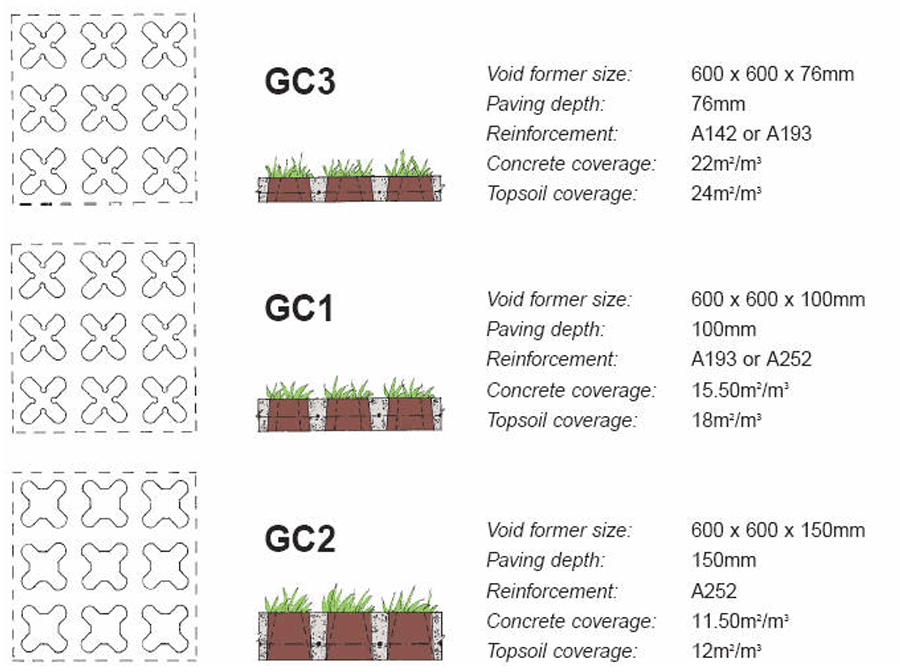

There are three types of Grasscrete. Each type has different dimensions, paving depth, reinforcement and load bearing capacity.
The three types are:
As mentioned above, each grasscrete type has a different load-bearing capacity, that is the maximum vehicle weight that can travel over the Grasscrete.
Here is a table specifying what the maximum vehicle weight, in accordance with its respective Grasscrete type:
| Maximum Vehicle Weight |
Grasscrete Type |
Slab Depth |
Reinforcement Details |
Minimum Sub-base Depth* |
| Upto 3.4 tonnes |
GC3 |
76mm |
200 x 200 mm grids x 6 mm |
100 mm |
| Upto 4.3 tonnes |
GC3 |
76mm |
200 x 200 mm grids x 7 mm |
150 mm |
| Upto 10.6 tonnes |
GC1 |
100 mm |
200 x 200 mm grids x 7 mm |
150 mm |
| Upto 13.3 tonnes |
GC1 |
100 mm |
200 x 200 mm grids x 8 mm |
150 mm |
| Upto 30 tonnes |
GC2 |
150 mm |
200 x 200 mm grids x 8 mm |
150 mm |
| Upto 40 tonnes |
GC2 |
150 mm |
200 x 200 mm grids x 10 mm |
150 mm |
* Assumes a free draining allowable ground bearing of 45kN/m2 which should also be sufficient to enable construction plant/delivery access.
